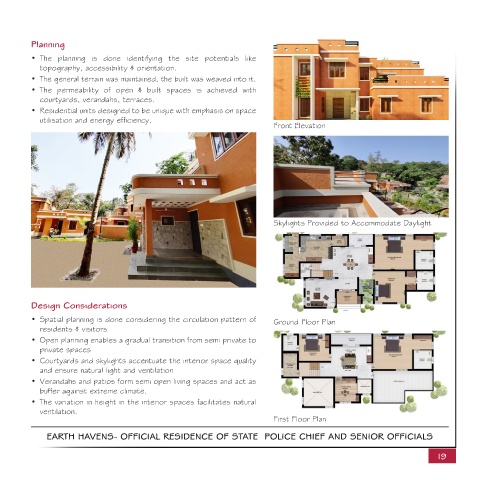

Planning

          •  The planning is done identifying the site potentials  like
             topography, accessibility & orientation.
          •  The general terrain was maintained, the built was weaved into it.
          •  The  permeability of open &  built spaces is achieved with
             courtyards, verandahs, terraces.
          •  Residential units designed to be unique with emphasis on space
             utilisation and energy efficiency.
                                                                                   Front Elevation
















                                                                                   Skylights Provided to Accommodate Daylight













          Design Considerations

          •  Spatial planning is done considering the circulation pattern of       Ground Floor Plan
             residents & visitors
          •  Open planning enables a gradual transition from semi private to
             private spaces
          •  Courtyards and skylights accentuate the interior space quality
             and ensure natural light and ventilation
          •  Verandahs and patios form semi open living spaces and act as
             buffer against extreme climate.
          •  The variation in height in the interior spaces facilitates natural
             ventilation.
                                                                                   First Floor Plan

               EARTH HAVENS- OFFICIAL RESIDENCE OF STATE  POLICE CHIEF AND SENIOR OFFICIALS

                                                                                                                                    19
