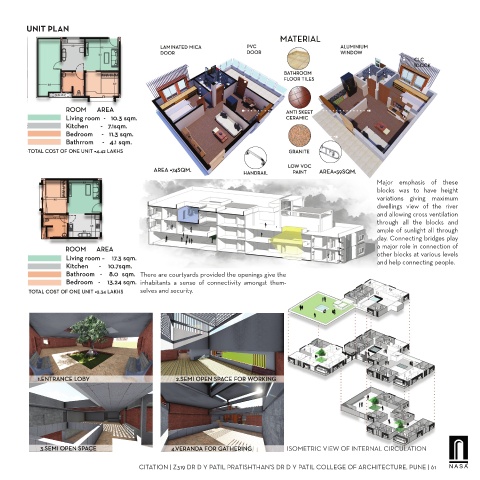

UNIT PLAN






























                                                                                                                             Major emphasis of these
                                                                                                                             blocks was to have height
                                                                                                                             variations giving maximum
                                                                                                                             dwellings  view of the river
                                                                                                                             and allowing cross ventilation
                                                                                                                             through all the blocks and
                                                                                                                             ample of sunlight all through
                                                                                                                             day. Connecting bridges play
                                                                                                                             a major role in connection of
                                                                                                                             other blocks at various levels
                                                                                                                             and help connecting people.

                                               There are courtyards provided the openings give the
                                               inhabitants a  sense of  connectivity  amongst  them-
                                               selves and security.































                                                                                                ISOMETRIC VIEW OF INTERNAL CIRCULATION
