Climate Responsive Design

• Reduction in radiation

• Natural ventilation

• Courtyard with open floor plan

• Opening design customized to avoid
direct heat gain

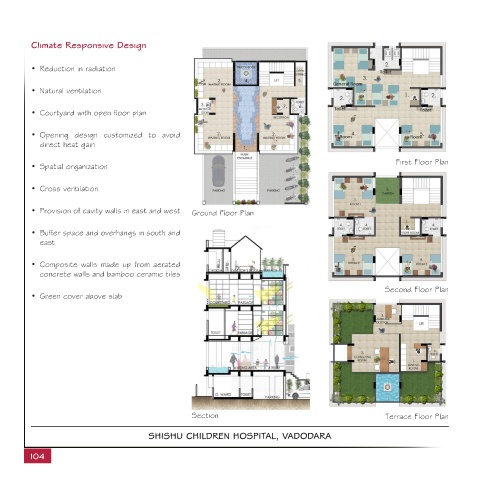

First Floor Plan
• Spatial organization

• Cross ventilation

• Provision of cavity walls in east and west Ground Floor Plan

• Buffer space and overhangs in south and
east

• Composite walls made up from aerated
concrete walls and bamboo ceramic tiles

Second Floor Plan
• Green cover above slab

Section Terrace Floor Plan

SHISHU CHILDREN HOSPITAL, VADODARA
