Self Sufficient Cluster





















          CONCEPT MODEL


                                                                          SITE PHOTOGRAPHS




          PARKING GRIDS

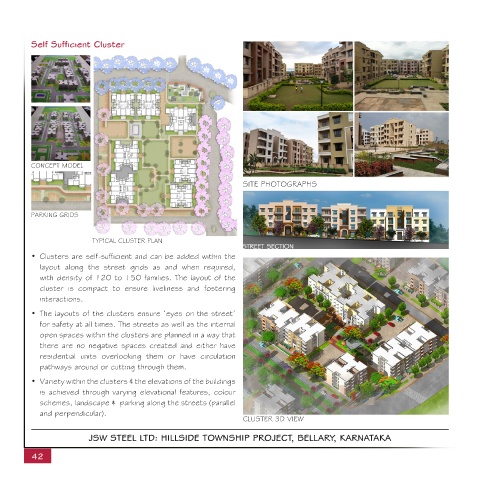

                             TYPICAL CLUSTER PLAN

          •  Clusters are self-sufficient and can be added within the
             layout along the street grids as and when  required,
             with density of 120 to 150 families. The layout of the
             cluster  is compact  to ensure liveliness and fostering
             interactions.

          •  The layouts of the clusters ensure ‘eyes on the street’
             for safety at all times. The streets as well as the internal
             open spaces within the clusters are planned in a way that
             there are no negative spaces created and either have
             residential  units  overlooking them  or  have circulation
             pathways around or cutting through them.

          •  Variety within the clusters & the elevations of the buildings
             is achieved through varying elevational features, colour
             schemes, landscape &  parking along the streets (parallel
             and perpendicular).
                                                                          CLUSTER 3D VIEW

                            JSW STEEL LTD: HILLSIDE TOWNSHIP PROJECT, BELLARY, KARNATAKA
