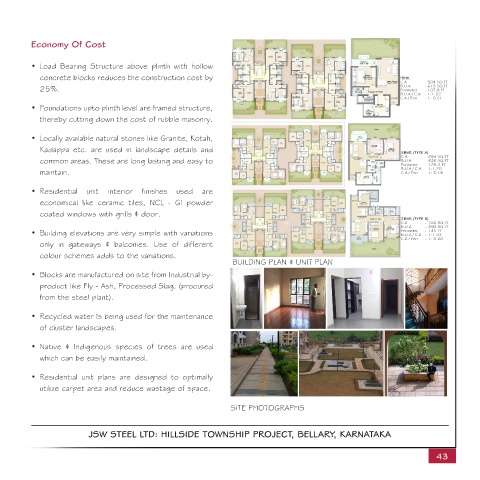

Economy Of Cost



          •  Load Bearing Structure above plinth with hollow
             concrete blocks reduces the construction cost by                                                            1BHK
                                                                                                                         C.A    - 504 SQ.FT
             25%.                                                                                                        B.U.A   - 615 SQ.FT
                                                                                                                                - 107.8 FT
                                                                                                                         Perimeter
                                                                                                                         B.U.A / C.A  - 1:1.22
                                                                                                                         C.A / Peri   - 1: 0.21
          •  Foundations upto plinth level are framed structure,
             thereby cutting down the cost of rubble masonry.

          •  Locally available natural stones like Granite, Kotah,
             Kadappa etc. are used in landscape details and                                                              2BHK (TYPE A)
             common areas. These are long lasting and easy to                                                            C.A     - 694 SQ.FT
                                                                                                                         B.U.A
                                                                                                                                 - 838 SQ.FT
                                                                                                                         Perimeter   - 128.3 FT
             maintain.                                                                                                   B.U.A / C.A  - 1:1.20
                                                                                                                         C.A / Peri
                                                                                                                                 - 1: 0.18
          •  Residential unit interior  finishes used are
             economical  like ceramic  tiles,  NCL  - GI powder
             coated windows with grills & door.
                                                                                                                         2BHK (TYPE B)
                                                                                                                         C.A     - 722 SQ.FT
                                                                                                                         B.U.A   - 890 SQ.FT
          •  Building elevations are very simple with variations                                                         Perimeter   - 145 FT
                                                                                                                         B.U.A / C.A  - 1:1.23
                                                                                                                         C.A / Peri   - 1: 0.20
             only  in gateways  & balconies.  Use  of  different
             colour schemes adds to the variations.
                                                                       BUILDING PLAN & UNIT PLAN
          •  Blocks are manufactured on site from Industrial by-

             product like Fly - Ash, Processed Slag. (procured
             from the steel plant).

          •  Recycled water Is being used for the maintenance
             of cluster landscapes.


          •  Native  & Indigenous species  of  trees  are  used
             which can be easily maintained.


          •  Residential  unit  plans  are  designed to  optimally
             utilize carpet area and reduce wastage of space.


                                                                      SITE PHOTOGRAPHS


                            JSW STEEL LTD: HILLSIDE TOWNSHIP PROJECT, BELLARY, KARNATAKA
