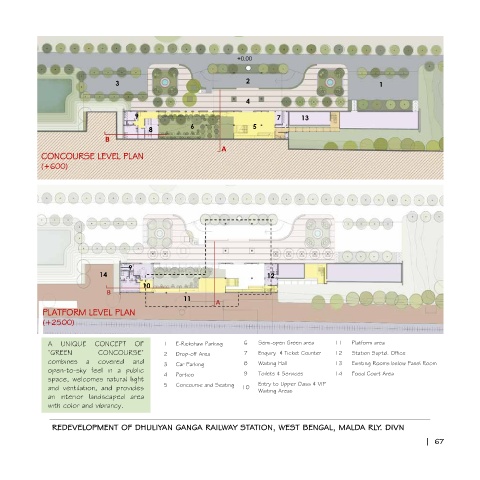

CONCOURSE LEVEL PLAN
(+600)
9
14 12
10
B
11 A
PLATFORM LEVEL PLAN
(+2500)
A UNIQUE CONCEPT OF 1 E-Rickshaw Parking 6 Semi-open Green area 11 Platform area
‘GREEN CONCOURSE’ 2 Drop-off Area 7 Enquiry & Ticket Counter 12 Station Suptd. Office
combines a covered and 3 Car Parking 8 Waiting Hall 13 Existing Rooms below Panel Room
open-to-sky feel in a public 9 Toilets & Services 14 Food Court Area
space, welcomes natural light 4 Portico
and ventilation, and provides 5 Concourse and Seating 10 Entry to Upper Class & VIP
Waiting Areas
an interior landscaped area
with color and vibrancy.
