PASSIVE VENTILATION STRATEGY FOR CLIMATIC DESIGN

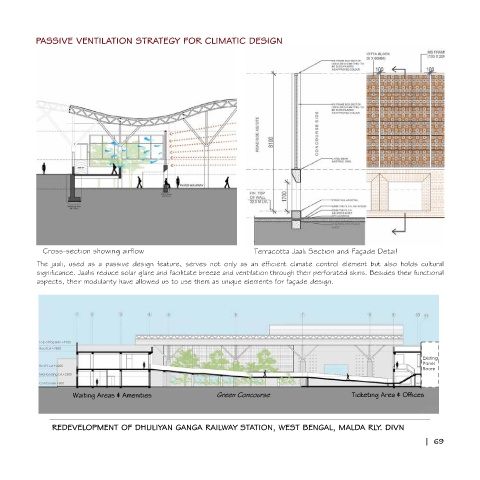

Cross-section showing airflow Terracotta Jaali Section and Façade Detail
The jaali, used as a passive design feature, serves not only as an efficient climate control element but also holds cultural
significance. Jaalis reduce solar glare and facilitate breeze and ventilation through their perforated skins. Besides their functional
aspects, their modularity have allowed us to use them as unique elements for façade design.
Top of façade +9100
Roof Lvl +7850
Existing
Panel
First Fl. Lvl +4200
Room
Mid-landing Lvl.+2500
Concourse +600
Waiting Areas & Amenities Green Concourse Ticketing Area & Offices
REDEVELOPMENT OF DHULIYAN GANGA RAILWAY STATION, WEST BENGAL, MALDA RLY. DIVN
