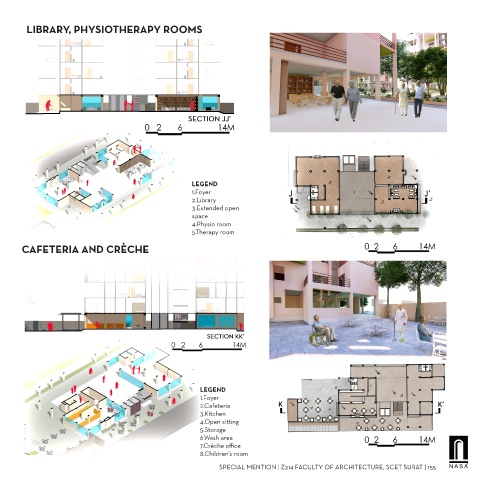

LIBRARY, PHYSIOTHERAPY ROOMS






























                                                                LEGEND
                                                                1.Foyer
                                                                2.Library
                                                                3.Extended open
                                                                space
                                                                4.Physio room
                                                                5.Therapy room

        CAFETERIA AND CRÈCHE




























                                                                   LEGEND
                                                                   1.Foyer
                                                                   2.Cafeteria
                                                                   3.Kitchen
                                                                   4.Open sitting
                                                                   5.Storage
                                                                   6.Wash area
                                                                   7.Crèche office
                                                                   8.Children’s room

                                                                         SPECIAL MENTION | Z214 FACULTY OF ARCHITECTURE, SCET SURAT | 155
