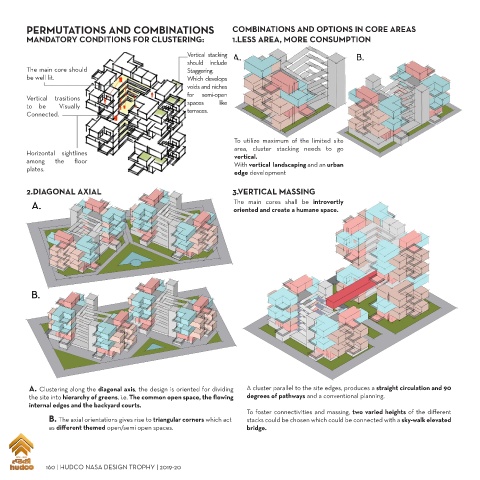

PERMUTATIONS AND COMBINATIONS COMBINATIONS AND OPTIONS IN CORE AREAS
MANDATORY CONDITIONS FOR CLUSTERING: 1.LESS AREA, MORE CONSUMPTION

Vertical stacking
should include
The main core should Staggering.
be well lit. Which develops
voids and niches
for semi-open
Vertical trasitions
to be Visually spaces like
Connected. terraces.

To utilize maximum of the limited site
area, cluster stacking needs to go
Horizontal sightlines vertical.
among the floor With vertical landscaping and an urban
plates. edge development

2.DIAGONAL AXIAL 3.VERTICAL MASSING

The main cores shall be introvertly
oriented and create a humane space.

A. Clustering along the diagonal axis, the design is oriented for dividing A cluster parallel to the site edges, produces a straight circulation and 90
the site into hierarchy of greens, i.e. The common open space, the flowing degrees of pathways and a conventional planning.
internal edges and the backyard courts.
To foster connectivities and massing, two varied heights of the different
B. The axial orientations gives rise to triangular corners which act stacks could be chosen which could be connected with a sky-walk elevated
as different themed open/semi open spaces. bridge.
