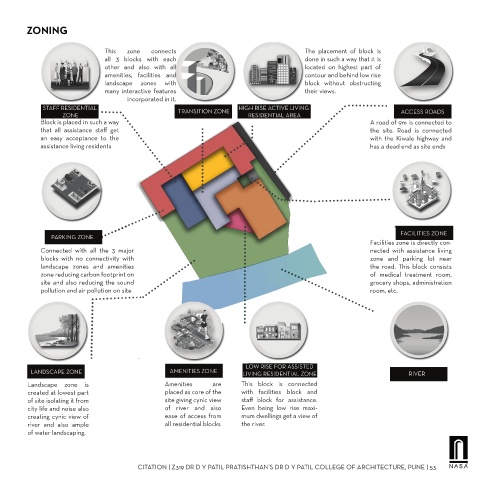

ZONING

This zone connects The placement of block is
all 3 blocks with each done in such a way that it is
other and also with all located on highest part of
amenities, facilities and contour and behind low rise
landscape zones with block without obstructing
many interactive features their views.
incorporated in it.

Block is placed in such a way A road of 9m is connected to
that all assistance staff get the site. Road is connected
an easy acceptance to the with the Kiwale highway and
assistance living residents has a dead end as site ends

Facilities zone is directly con-
Connected with all the 3 major nected with assistance living
blocks with no connectivity with zone and parking lot near
landscape zones and amenities the road. This block consists
zone reducing carbon footprint on of medical treatment room,
site and also reducing the sound grocery shops, administration
pollution and air pollution on site room, etc.

Landscape zone is Amenities are This block is connected
created at lowest part placed as core of the with facilities block and
of site isolating it from site giving cynic view staff block for assistance.
city life and noise also of river and also Even being low rise maxi-
creating cynic view of ease of access from mum dwellings get a view of
river and also ample all residential blocks the river.
of water landscaping.
