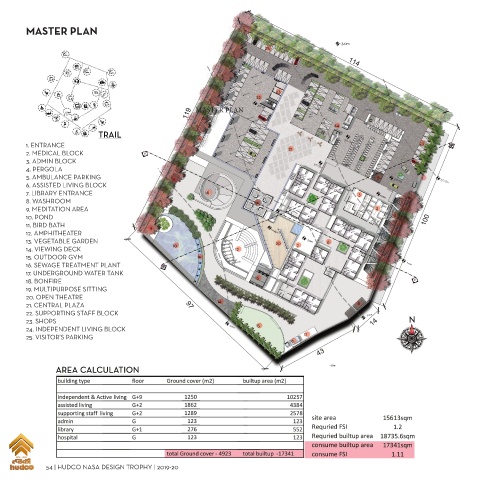

MASTER PLAN
MASTER PLAN
1. ENTRANCE
2. MEDICAL BLOCK
3. ADMIN BLOCK
4. PERGOLA
5. AMBULANCE PARKING
6. ASSISTED LIVING BLOCK
7. LIBRARY ENTRANCE
8. WASHROOM
9. MEDITATION AREA
10. POND
11. BIRD BATH
12. AMPHITHEATER
13. VEGETABLE GARDEN
14. VIEWING DECK
15. OUTDOOR GYM
16. SEWAGE TREATMENT PLANT
17. UNDERGROUND WATER TANK
18. BONFIRE
19. MULTIPURPOSE SITTING
20. OPEN THEATRE
21. CENTRAL PLAZA
22. SUPPORTING STAFF BLOCK
23. SHOPS
24. INDEPENDENT LIVING BLOCK
25. VISITOR’S PARKING
