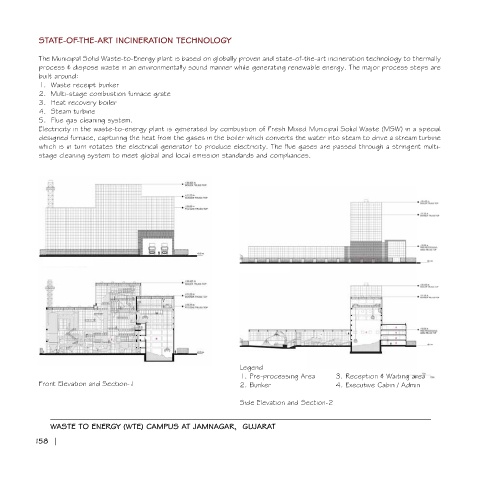

STATE-OF-THE-ART INCINERATION TECHNOLOGY

The Municipal Solid Waste-to-Energy plant is based on globally proven and state-of-the-art incineration technology to thermally
process & dispose waste in an environmentally sound manner while generating renewable energy. The major process steps are
built around:
1. Waste receipt bunker
2. Multi-stage combustion furnace grate
3. Heat recovery boiler
4. Steam turbine
5. Flue gas cleaning system.
Electricity in the waste-to-energy plant is generated by combustion of Fresh Mixed Municipal Solid Waste (MSW) in a special
designed furnace, capturing the heat from the gases in the boiler which converts the water into steam to drive a stream turbine
which is in turn rotates the electrical generator to produce electricity. The flue gases are passed through a stringent multi-
stage cleaning system to meet global and local emission standards and compliances.

Legend
1. Pre-processing Area 3. Reception & Waiting area
Front Elevation and Section-1 2. Bunker 4. Executive Cabin / Admin

Side Elevation and Section-2

WASTE TO ENERGY (WTE) CAMPUS AT JAMNAGAR, GUJARAT
