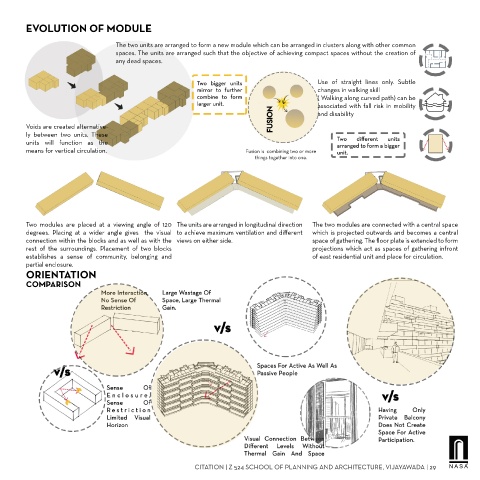

EVOLUTION OF MODULE
The two units are arranged to form a new module which can be arranged in clusters along with other common
spaces. The units are arranged such that the objective of achieving compact spaces without the creation of
any dead spaces.
Use of straight lines only. Subtle
changes in walking skill
( Walking along curved path) can be
associated with fall risk in mobility
and disability
Voids are created alternative-
ly between two units. These
units will function as the
means for vertical circulation.
Two modules are placed at a viewing angle of 120 The units are arranged in longitudinal direction The two modules are connected with a central space
degrees. Placing at a wider angle gives the visual to achieve maximum ventilation and different which is projected outwards and becomes a central
connection within the blocks and as well as with the views on either side. space of gathering. The floor plate is extended to form
rest of the surroundings. Placement of two blocks projections which act as spaces of gathering infront
establishes a sense of community, belonging and of east residential unit and place for circulation.
partial enclosure.
ORIENTATION
COMPARISON
