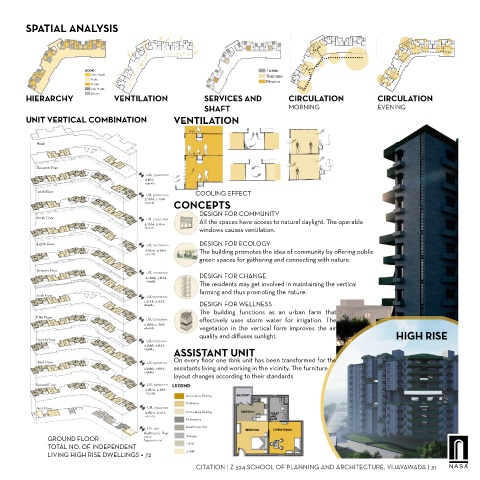

SPATIAL ANALYSIS













          HIERARCHY                    VENTILATION                  SERVICES AND                CIRCULATION                   CIRCULATION
                                                                    SHAFT                       MORNING                       EVENING

          UNIT VERTICAL COMBINATION                       VENTILATION













                                                                  COOLING EFFECT
                                                          CONCEPTS
                                                                   DESIGN FOR COMMUNITY
                                                                   All the spaces have access to natural daylight. The operable
                                                                   windows causes ventilation.

                                                                   DESIGN FOR ECOLOGY
                                                                   The building promotes the idea of community by offering public
                                                                   green spaces for gathering and connecting with nature.

                                                                   DESIGN FOR CHANGE
                                                                   The residents may get involved in maintaining the vertical
                                                                   farming and thus promoting the nature.

                                                                   DESIGN FOR WELLNESS
                                                                   The building functions as an urban farm that
                                                                   effectively uses storm water for irrigation. The
                                                                   vegetation in the vertical form improves the air
                                                                   quality and diffuses sunlight.

                                                          ASSISTANT UNIT
                                                          On every floor one 1bhk unit has been transformed for the
                                                          assistants living and working in the vicinity. The furniture
                                                          layout changes according to their standards











                 GROUND FLOOR
                 TOTAL NO. OF INDEPENDENT
                 LIVING HIGH RISE DWELLINGS = 72
