SANITATION
 SANIT A TION

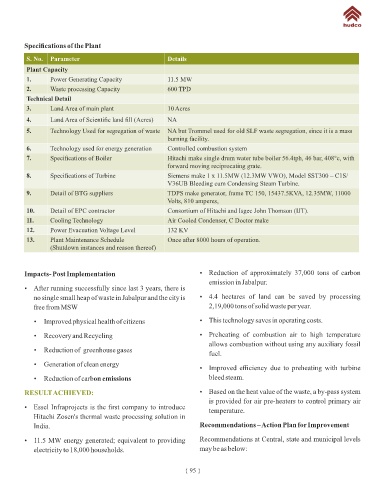

 Ÿ A  crane  picks  up  the  waste  and  dumps  it  into  a   MOBILISATION OF RESOURCES:   Specifications of the Plant
 combustion chamber.   JWCTMPL is the waste collection and transportation firm
         S. No.  Parameter                           Details
 Ÿ The waste is burned, generating heat.   which works under JMC, it provides waste collected from
         Plant Capacity
 Ÿ The heat turns the water in the attached boiler into   households to the WTE plant. The tipping fee of C&T is
 steam.   1.    Power Generating Capacity            11.5 MW
 Rs. 1470/ton.
 Ÿ The  high-pressure  steam  forces  a  turbine  to  spin,   2.  Waste processing Capacity  600 TPD
 producing electricity.   Technical Detail
         3.     Land Area of main plant              10 Acres
         4.     Land Area of Scientific land fill (Acres)  NA

         5.     Technology Used for segregation of waste  NA but Trommel used for old SLF waste segregation, since it is a mass
                                                     burning facility.
         6.     Technology used for energy generation  Controlled combustion system
         7.     Specifications of Boiler              Hitachi make single drum water tube boiler 56.4tph, 46 bar, 408°c, with
                                                     forward moving reciprocating grate.
         8.     Specifications of Turbine             Siemens make 1 x 11.5MW (12.3MW VWO), Model SST300 – C1S/
                                                     V36UB Bleeding cum Condensing Steam Turbine.
         9.     Detail of BTG suppliers              TDPS make generator, frame TC 150, 15437.5KVA, 12.35MW, 11000
                                                     Volts, 810 amperes,
         10.    Detail of EPC contractor             Consortium of Hitachi and Isgec John Thomson (IJT).
 Technology  11.  Cooling Technology                 Air Cooled Condenser, C Doctor make
         12.    Power Evacuation Voltage Level       132 KV
         13.    Plant Maintenance Schedule           Once after 8000 hours of operation.
                (Shutdown instances and reason thereof)



         Impacts- Post Implementation                         Ÿ Reduction  of  approximately  37,000  tons  of  carbon
                                                                 emission in Jabalpur.
         Ÿ After running successfully since last 3 years, there is
           no single small heap of waste in Jabalpur and the city is   Ÿ 4.4  hectares  of  land  can  be  saved  by  processing
           free from MSW                                         2,19,000 tons of solid waste per year.

 Emission regulations and Jabalpur emission Levels            Ÿ This technology saves in operating costs.
           •  Improved physical health of citizens
 3
 In mg/Nm    European   India: Municipal Solid   Jabalpur Plant   •  Recovery and Recycling   Ÿ Preheating  of  combustion  air  to  high  temperature
 Directive 2000/76/EC   Wastes-2016   Emission Levels            allows combustion without using any auxiliary fossil
           •  Reduction of  greenhouse gases
                                                                 fuel.
 Dust   10   50   09   •  Generation of clean energy
                                                              Ÿ Improved efficiency due to preheating with turbine
 CO   50   100   40   •  Reduction of carbon emissions           bleed steam.

 NOx   200   400   20   RESULT ACHIEVED:                      Ÿ Based on the heat value of the waste, a by-pass system
                                                                 is provided for air pre-heaters to control primary air
         Ÿ Essel Infraprojects is the first company to introduce
 HCl   30   50   24                                              temperature.
           Hitachi Zosen's thermal waste processing solution in
 SO  50   200   28   India.                                   Recommendations – Action Plan for Improvement
 2
         Ÿ 11.5 MW energy generated; equivalent to providing   Recommendations at Central, state and municipal levels
 All emissions values corrected to 11% Oxygen on a dry basis as per MSW Rules 2016.
           electricity to 18,000 households.                  may be as below:
