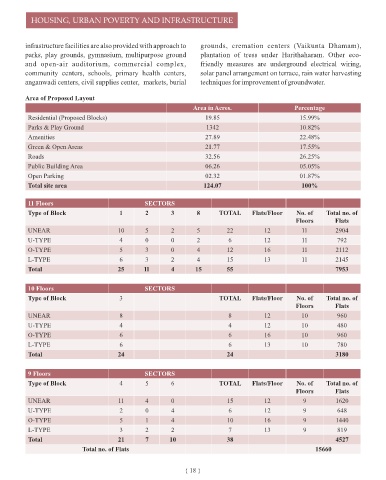

HOUSING, URBAN POVERTY AND INFRASTRUCTURE



         infrastructure facilities are also provided with approach to   grounds,  cremation  centers  (Vaikunta  Dhamam),      Site Layout
         parks, play grounds, gymnasium, multipurpose ground   plantation  of  tress  under  Harithaharam.  Other  eco-
         and  open-air  auditorium,  commercial  complex,      friendly  measures  are  underground  electrical  wiring,
         community  centers,  schools,  primary  health  centers,   solar panel arrangement on terrace, rain water harvesting
         anganwadi centers, civil supplies center,  markets, burial   techniques for improvement of groundwater.

         Area of Proposed Layout
                                                            Area in Acres.                  Percentage
          Residential (Proposed Blocks)                         19.85                        15.99%
          Parks & Play Ground                                   1342                         10.82%
          Amenities                                             27.89                        22.48%
          Green & Open Areas                                    21.77                        17.55%
          Roads                                                 32.56                        26.25%
          Public Building Area                                  06.26                        05.05%
          Open Parking                                          02.32                        01.87%
          Total site area                                       124.07                        100%


          11 Floors                           SECTORS
          Type of Block               1       2       3       8     TOTAL      Flats/Floor  No. of   Total no. of
                                                                                            Floors      Flats
          UNEAR                      10       5       2       5        22         12          11        2904
          U-TYPE                      4       0       0       2        6          12          11         792
          O-TYPE                      5       3       0       4        12         16          11        2112
          L-TYPE                      6       3       2       4        15         13          11        2145
          Total                      25      11       4      15        55                               7953


          10 Floors                           SECTORS
          Type of Block               3                             TOTAL      Flats/Floor  No. of   Total no. of
                                                                                            Floors      Flats
          UNEAR                       8                                8          12          10         960
          U-TYPE                      4                                4          12          10         480
          O-TYPE                      6                                6          16          10         960
          L-TYPE                      6                                6          13          10         780
          Total                      24                                24                               3180

          9 Floors                            SECTORS
          Type of Block               4       5       6             TOTAL      Flats/Floor  No. of   Total no. of
                                                                                            Floors      Flats
          UNEAR                      11       4       0                15         12          9         1620
          U-TYPE                      2       0       4                6          12          9          648
          O-TYPE                      5       1       4                10         16          9         1440
          L-TYPE                      3       2       2                7          13          9          819
          Total                      21       7      10                38                               4527
                          Total no. of Flats                                                      15660
