HOUSING, URBAN POVERTY AND INFRASTRUCTURE

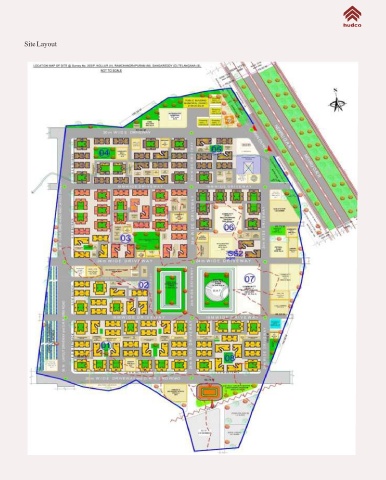

infrastructure facilities are also provided with approach to grounds, cremation centers (Vaikunta Dhamam), Site Layout
parks, play grounds, gymnasium, multipurpose ground plantation of tress under Harithaharam. Other eco-
and open-air auditorium, commercial complex, friendly measures are underground electrical wiring,
community centers, schools, primary health centers, solar panel arrangement on terrace, rain water harvesting
anganwadi centers, civil supplies center, markets, burial techniques for improvement of groundwater.

Area of Proposed Layout
Area in Acres. Percentage
Residential (Proposed Blocks) 19.85 15.99%
Parks & Play Ground 1342 10.82%
Amenities 27.89 22.48%
Green & Open Areas 21.77 17.55%
Roads 32.56 26.25%
Public Building Area 06.26 05.05%
Open Parking 02.32 01.87%
Total site area 124.07 100%

11 Floors SECTORS
Type of Block 1 2 3 8 TOTAL Flats/Floor No. of Total no. of
Floors Flats
UNEAR 10 5 2 5 22 12 11 2904
U-TYPE 4 0 0 2 6 12 11 792
O-TYPE 5 3 0 4 12 16 11 2112
L-TYPE 6 3 2 4 15 13 11 2145
Total 25 11 4 15 55 7953

10 Floors SECTORS
Type of Block 3 TOTAL Flats/Floor No. of Total no. of
Floors Flats
UNEAR 8 8 12 10 960
U-TYPE 4 4 12 10 480
O-TYPE 6 6 16 10 960
L-TYPE 6 6 13 10 780
Total 24 24 3180

9 Floors SECTORS
Type of Block 4 5 6 TOTAL Flats/Floor No. of Total no. of
Floors Flats
UNEAR 11 4 0 15 12 9 1620
U-TYPE 2 0 4 6 12 9 648
O-TYPE 5 1 4 10 16 9 1440
L-TYPE 3 2 2 7 13 9 819
Total 21 7 10 38 4527
Total no. of Flats 15660
