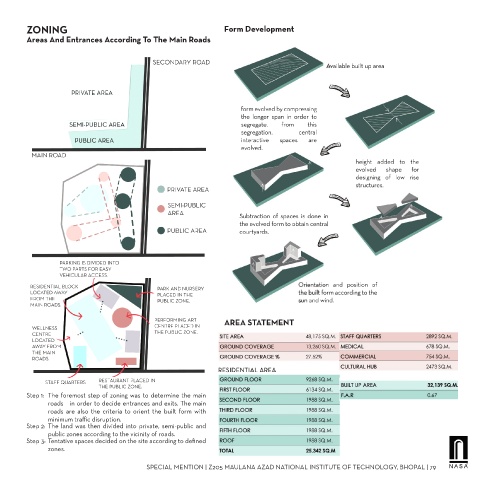

ZONING Form Development
Areas And Entrances According To The Main Roads

AREA STATEMENT

Step 1: The foremost step of zoning was to determine the main
roads in order to decide entrances and exits. The main
roads are also the criteria to orient the built form with
minimum traffic disruption.
Step 2: The land was then divided into private, semi-public and
public zones according to the vicinity of roads.
Step 3: Tentative spaces decided on the site according to defined
zones.
